Interactive Mission

Smart Environment Monitor

This final Foundation mission combines sensors, displays, buttons, GPIO, decisions, and debugging into one complete embedded systems project.

Mission 12FoundationBeginner70-90 minutesParent SafeTeacher Friendly

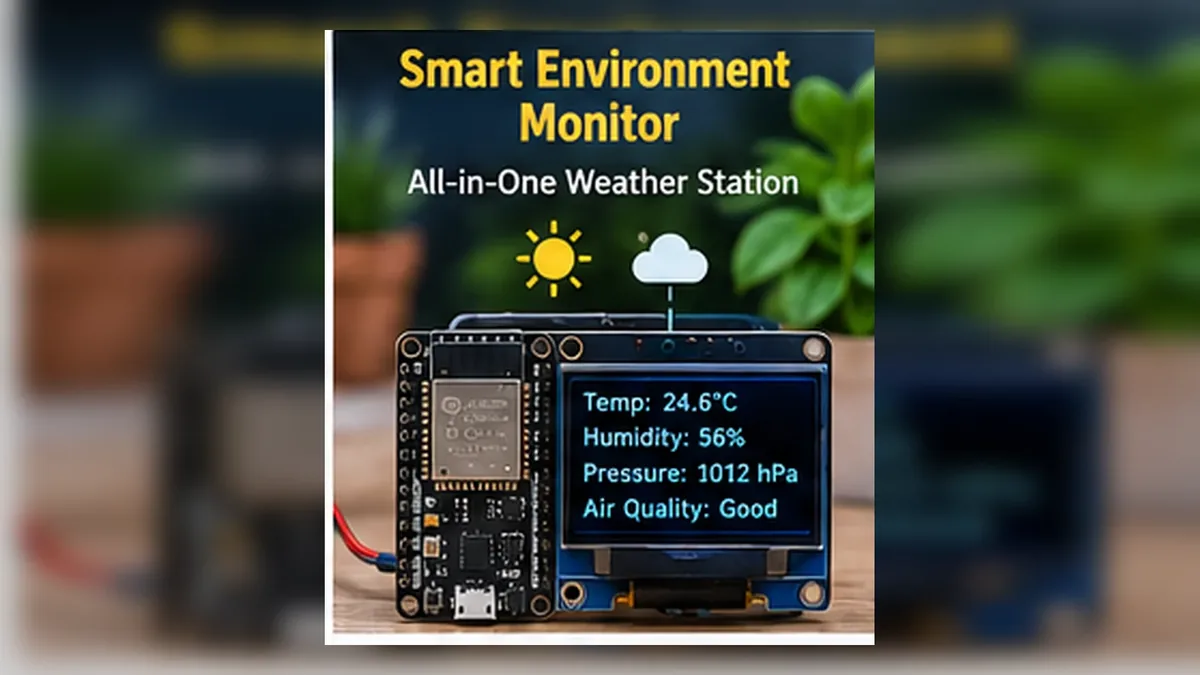

ESP32 smart environment monitor capstone with sensor readings and display dashboard

Review, Testing, and References

Author: Abdul Mubeen and the ESP32 Engine editorial team. Last updated: 2026-11-04. Reviewed: educational accuracy and beginner safety. Level: Beginner. Estimated time: 70-90 min.

This guide is written for learning and bench prototyping. Check the testing notes before adapting the circuit to different boards, batteries, relays, motors, or outdoor hardware.

Before you start

Board and software
Classic ESP32-WROOM DevKit / ESP32 Dev Module, Arduino IDE 2 and Arduino-ESP32 3.3.2 review baseline, not a latest-release claim. Match GPIO labels, not header positions.
Circuit and dependencies
The qualified BME280/SSD1306 I2C modules on SDA21/SCL22; button GPIO23 to GND; green LED GPIO18 and red LED GPIO19, each with its own series resistor to GND. Same pinned Adafruit versions as the environmental-sensors lesson.
Before this lesson
Reading Environmental Sensors; I2C Communication; Button Debouncing
Evidence limits
Expected behavior describes the example, not a hardware test performed in this review. Contributor media, where present, is identified separately; no compilation, board upload or accuracy measurement is claimed.
Mission 12

Build Your Foundation Capstone

The Story

You started this course by blinking a light. Now you are building a small monitoring system that observes the world, processes data, shows information, accepts user input, and alerts with LEDs.

That is the embedded systems workflow in miniature: observe, measure, process, display, and alert. This is the point where separate lessons become one real device.

Explain Like I'm 12

A smart monitor is like a careful assistant. It looks at the room, writes down the numbers, decides whether things are normal, and shows a simple status.

The BME280 is the monitor's senses. The ESP32 is the brain. The OLED is the face. The LEDs are quick warning lights. The button lets the user ask for a different page.

Mission Goal

Build a complete smart environment monitor that combines BME280 readings, OLED pages, LED status alerts, a debounced push button, and formatted Serial Monitor output.

Estimated Time

70-90 min

Difficulty

Beginner Capstone

Prerequisites

Skills You'll Learn

  • Combine sensor input, OLED output, LEDs, and a button in one project
  • Use thresholds to turn measurements into system status
  • Switch OLED display pages with a debounced button
  • Sample environmental data at a stable interval
  • Build and test a small real-world embedded monitoring system

Components Required

  • ESP32 DevKit V1Runs the complete monitor logic
  • BME280 environmental sensorMeasures temperature, humidity, and pressure
  • SSD1306 OLED displayShows monitor pages and status
  • Green LED and red LEDShow normal and warning status
  • Push buttonSwitches between OLED pages
  • Breadboard, jumper wires, and LED resistorsBuild the complete circuit safely

A Monitor Turns Measurements Into Meaning

ESP32 smart environment monitor with BME280, OLED display, green LED, red LED, and push button

A sensor reading by itself is just a number. A monitor turns that number into information a person can use.

The BME280 measures the room. The ESP32 samples the data at a stable interval. The code compares temperature with a threshold. The OLED shows readable pages. The LEDs show quick status. The button gives the user control.

That is the same pattern used in many real embedded products.

Engineering Explanation

Classic ESP32-WROOM DevKit; Arduino-ESP32 3.3.2 review baseline (not latest). Selected display: a documented 3.3 V-compatible 128×64 I2C SSD1306 module with bus pull-ups to 3.3 V, four labelled VCC/GND/SDA/SCL pins and suitable reset circuitry. SH1106 and SPI displays need another driver/wiring. Pins are SDA21/SCL22; set OLED_ADDRESS from the module documentation/scanner. An ACK checks address response, not controller identity. Install Adafruit SSD1306 2.5.13, Adafruit GFX 1.12.1 and Adafruit BusIO 1.17.0. Documentation reviewed; no compilation or hardware testing performed.

The engineering workflow for this capstone is observe, measure, process, display, and alert.

Observe means the system is aware of the physical world through the BME280. Measure means the sensor converts temperature, humidity, and pressure into digital values over I2C. Process means the ESP32 formats those values, compares them with thresholds, and decides the system status. Display means the OLED shows the user what matters. Alert means LEDs communicate status immediately.

The green LED means the environment is normal. The red LED means the temperature is above the warning threshold. A yellow status can appear as text on the OLED when the reading is approaching the threshold, even though this beginner hardware uses green and red LEDs only.

Stable monitoring matters. Sensor values fluctuate because air moves, electronics have noise, and sensors have limits. A professional monitor does not panic over every tiny change. It samples at a reasonable interval, formats honest values, and uses thresholds that match the real use case.

Project walkthrough: wire the I2C devices first, run the scanner if needed, test the OLED, test the BME280, add LEDs, add the button, then combine the logic. Engineering review: each block should have one job. The sensor block measures, the decision block sets status, the display block shows pages, and the alert block controls LEDs.

Document your actual wiring, threshold choices and checks when sharing an adaptation. These status labels do not make a certified safety monitor.

The pinned SSD1306 begin() result checks buffer/init success, not display detection. The separate I2C ACK check still cannot prove model identity or visible display operation. Confirm the actual screen output.

BME280 library review: 2.3.0, Unified Sensor 1.1.15 and BusIO 1.17.0. Sample checks reject non-finite/out-of-range values and a failed bus/chip-ID check. They cannot detect every stale but plausible reading or prove calibration. Startup initialization is still a one-time library operation; correct missing startup hardware with power off, then reset. Per-operation Wire timeouts do not bound every library call. Power off before changing sensor wiring; do not hot-unplug a live breadboard.

Real-World Analogy

A smart environment monitor is like a tiny weather station for your desk. It does not just collect numbers; it explains what those numbers mean.

It is also like a smoke alarm in a gentle beginner form. The device watches a condition and alerts when a value crosses a threshold.

The OLED pages are like screens on a smartwatch. One screen cannot show everything, so the button lets you move between focused views.

The LEDs are like status lights on a router. You can understand the basic state without reading detailed text.

The Serial Monitor is like an engineer's service panel. Users look at the OLED, but builders use the detailed log to debug.

Wiring Diagram

Follow these steps in order. Unplug USB before you change any wires.

ESP32 DevKit V1 wired to BME280 and SSD1306 OLED over I2C, green LED on GPIO18, red LED on GPIO19, button on GPIO23 to GND
  1. 1

    Unplug the ESP32 USB cable before wiring.

  2. 2

    Connect BME280 VCC to ESP32 3.3 V and BME280 GND to ESP32 GND.

  3. 3

    Connect BME280 SDA to GPIO21 and BME280 SCL to GPIO22.

  4. 4

    Connect OLED VCC to ESP32 3.3 V and OLED GND to ESP32 GND.

  5. 5

    Connect OLED SDA to the same GPIO21 SDA row and OLED SCL to the same GPIO22 SCL row.

  6. 6

    Connect GPIO18 through a 220 ohm or 330 ohm resistor to the green LED anode, then connect the LED cathode to GND.

  7. 7

    Connect GPIO19 through a 220 ohm or 330 ohm resistor to the red LED anode, then connect the LED cathode to GND.

  8. 8

    Connect one side of the push button to GPIO23 and the other side to GND.

  9. 9

    The button uses INPUT_PULLUP, so pressed reads LOW and released reads HIGH.

  10. 10

    Install Adafruit BME280, Adafruit Unified Sensor, Adafruit SSD1306, and Adafruit GFX from Arduino Library Manager.

GPIO Table

SignalESP32 PinModeNotes
I2C SDAGPIO21I2C dataShared by BME280 SDA and OLED SDA.
I2C SCLGPIO22I2C clockShared by BME280 SCL and OLED SCL.
Green LEDGPIO18Digital outputON only for a valid sample classified NORMAL; OFF for UNAVAILABLE.
Red LEDGPIO19Digital outputON only for a valid WARNING sample; OFF for UNAVAILABLE. Fault text appears on OLED/Serial.
Page buttonGPIO23INPUT_PULLUPPressed reads LOW and switches OLED pages.

Arduino Code

Copy this into Arduino IDE, then click Upload.

smart_environment_monitor_capstone.ino
#include <Arduino.h>
#include <math.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <Adafruit_BME280.h>

const int I2C_SDA = 21;
const int I2C_SCL = 22;

const int GREEN_LED_PIN = 18;
const int RED_LED_PIN = 19;
const int BUTTON_PIN = 23;

const int SCREEN_WIDTH = 128;
const int SCREEN_HEIGHT = 64;
const int OLED_RESET = -1;
const int OLED_ADDRESS = 0x3C;

const float TEMP_APPROACH_C = 28.0;
const float TEMP_WARNING_C = 30.0;

const unsigned long SAMPLE_INTERVAL_MS = 2000;
const unsigned long DEBOUNCE_MS = 40;

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
Adafruit_BME280 bme;
uint8_t bmeAddress = 0;

float temperatureC = NAN;
float humidity = NAN;
float pressureHpa = NAN;
bool sampleValid = false;

int currentPage = 0;
int lastButtonReading = HIGH;
int stableButtonState = HIGH;
unsigned long lastButtonChangeTime = 0;
unsigned long lastSampleTime = 0;

bool oledResponds() {
  Wire.beginTransmission(OLED_ADDRESS);
  return Wire.endTransmission() == 0; // ACK only, not controller identification.
}

bool bmeResponds() {
  Wire.beginTransmission(bmeAddress); Wire.write(0xD0);
  if (Wire.endTransmission(false) != 0) return false;
  if (Wire.requestFrom(bmeAddress, uint8_t(1)) != 1) return false;
  return Wire.read() == 0x60; // Compatibility check, not authenticity/calibration.
}
bool valuesPlausible(float t, float rh, float hpa) {
  return isfinite(t) && isfinite(rh) && isfinite(hpa) &&
    t >= -40 && t <= 85 && rh >= 0 && rh <= 100 && hpa >= 300 && hpa <= 1100;
}

void setup() {
  Serial.begin(115200);
  delay(1000);

  pinMode(GREEN_LED_PIN, OUTPUT);
  pinMode(RED_LED_PIN, OUTPUT);
  digitalWrite(GREEN_LED_PIN, LOW);
  digitalWrite(RED_LED_PIN, LOW);
  pinMode(BUTTON_PIN, INPUT_PULLUP);

  Wire.begin(I2C_SDA, I2C_SCL);

  Wire.setTimeOut(50); // Per bus operation, not a whole-sketch deadline.
  if (!oledResponds()) {
    Serial.println("No I2C ACK at OLED_ADDRESS; check power, bus and address, then reset");
    while (true) delay(1000);
  }
  if (!display.begin(SSD1306_SWITCHCAPVCC, OLED_ADDRESS, true, false)) {
    Serial.println("SSD1306 buffer/init failed; this is not a presence test");
    while (true) delay(1000);
  }

  bmeAddress = 0x76;
  bool bmeReady = bme.begin(bmeAddress, &Wire);
  if (!bmeReady) {
    bmeAddress = 0x77;
    bmeReady = bme.begin(bmeAddress, &Wire);
  }

  if (!bmeReady) {
    Serial.println("BME280 not found at 0x76 or 0x77.");
    showMessage("BME280 not found", "Check I2C wiring");
    while (true) {
      delay(1000);
    }
  }

  showMessage("Course 01", "Capstone ready");
  Serial.println("Mission 12: Smart Environment Monitor ready");
  delay(1500);
}

void loop() {
  handleButton();

  unsigned long now = millis();
  if (now - lastSampleTime >= SAMPLE_INTERVAL_MS) {
    lastSampleTime = now;
    readSensorData();
    updateAlerts();
    printSerialReport();
    updateDisplay();
  }
}

void handleButton() {
  int reading = digitalRead(BUTTON_PIN);

  if (reading != lastButtonReading) {
    lastButtonChangeTime = millis();
    lastButtonReading = reading;
  }

  if ((millis() - lastButtonChangeTime) > DEBOUNCE_MS) {
    if (reading != stableButtonState) {
      stableButtonState = reading;

      if (stableButtonState == LOW) {
        currentPage = 1 - currentPage;
        updateDisplay();
      }
    }
  }
}

void readSensorData() {
  sampleValid = false;
  temperatureC = humidity = pressureHpa = NAN;
  if (!bmeResponds()) return;
  temperatureC = bme.readTemperature();
  humidity = bme.readHumidity();
  pressureHpa = bme.readPressure() / 100.0;
  sampleValid = valuesPlausible(temperatureC, humidity, pressureHpa);
}

String environmentStatus() {
  if (!sampleValid) return "UNAVAILABLE";
  if (temperatureC >= TEMP_WARNING_C) {
    return "WARNING";
  }

  if (temperatureC >= TEMP_APPROACH_C) {
    return "WARM";
  }

  return "NORMAL";
}

void updateAlerts() {
  String status = environmentStatus();

  digitalWrite(GREEN_LED_PIN, status == "NORMAL" ? HIGH : LOW);
  digitalWrite(RED_LED_PIN, status == "WARNING" ? HIGH : LOW);
}

void updateDisplay() {
  if (!sampleValid) { showMessage("Sensor unavailable", "Check bus; see Serial"); return; }
  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(1);

  if (currentPage == 0) {
    display.setCursor(0, 0);
    display.println("Page 1: Climate");
    display.setCursor(0, 20);
    display.print("Temp: ");
    display.print(temperatureC, 1);
    display.println(" C");
    display.setCursor(0, 38);
    display.print("Hum:  ");
    display.print(humidity, 1);
    display.println(" %");
  } else {
    display.setCursor(0, 0);
    display.println("Page 2: Status");
    display.setCursor(0, 20);
    display.print("Pres: ");
    display.print(pressureHpa, 1);
    display.println(" hPa");
    display.setCursor(0, 42);
    display.print("Status: ");
    display.println(environmentStatus());
  }

  display.display();
}

void printSerialReport() {
  if (!sampleValid) { Serial.println("Sensor unavailable | Status: UNAVAILABLE"); return; }
  Serial.print("Temperature: ");
  Serial.print(temperatureC, 1);
  Serial.print(" C | Humidity: ");
  Serial.print(humidity, 1);
  Serial.print(" % | Pressure: ");
  Serial.print(pressureHpa, 1);
  Serial.print(" hPa | Status: ");
  Serial.println(environmentStatus());
}

void showMessage(const char* line1, const char* line2) {
  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(1);
  display.setCursor(0, 14);
  display.println(line1);
  display.setCursor(0, 34);
  display.println(line2);
  display.display();
}

Required libraries: Adafruit BME280, Adafruit Unified Sensor, Adafruit SSD1306, and Adafruit GFX.

The BME280 and OLED share GPIO21 SDA and GPIO22 SCL.

The button uses INPUT_PULLUP, so pressed means LOW.

Green LED means normal, red LED means temperature warning.

Change TEMP_WARNING_C and TEMP_APPROACH_C to match your room.

Review baseline: Arduino-ESP32 3.3.2; SSD1306 2.5.13, GFX 1.12.1, BME280 2.3.0, Unified Sensor 1.1.15 and BusIO 1.17.0.

UNAVAILABLE is not NORMAL; range/bus checks do not certify sensor health or calibration.

Line-by-line Explanation

  • The include lines load the I2C, OLED, graphics, and BME280 libraries needed by the project.
  • GPIO21 and GPIO22 are used for the shared I2C bus, matching the OLED and BME280 lessons.
  • GPIO18 and GPIO19 control the green and red LED alert outputs.
  • GPIO23 reads the page button with INPUT_PULLUP, so pressing the button connects the pin to GND and reads LOW.
  • TEMP_APPROACH_C and TEMP_WARNING_C are the decision thresholds. They turn numbers into status.
  • SAMPLE_INTERVAL_MS keeps sensor reading stable instead of reading as fast as possible.
  • The button handler uses debounce timing so one physical press changes the page once.
  • readSensorData() keeps measurement code separate from display and alert code.
  • environmentStatus() is the decision-making function. It returns UNAVAILABLE for an invalid sample, otherwise NORMAL, WARM, or WARNING.
  • updateAlerts() turns the LEDs on or off based on the current status.
  • updateDisplay() shows either Page 1 or Page 2 depending on the button-selected page.
  • printSerialReport() prints complete formatted data for debugging and testing.
  • sampleValid starts false. Invalid data returns UNAVAILABLE before threshold comparisons, so both status LEDs stay OFF; a later valid scheduled sample can restore normal classification.

Recorded two-page environment monitor and LED states

Explore the build photos and recorded results. Open any image to inspect the details.

About this recorded build

Owner-supplied build records, not an independent retest or a calibrated accuracy comparison. Use the wiring table and module labels; photos can hide breadboard contacts.

The supplied code exactly matches this lesson: green LED GPIO18, red LED GPIO19, button GPIO23 with INPUT_PULLUP, SDA21/SCL22, and a 128×64 OLED at 0x3C.

The example thresholds are NORMAL below 28 C, WARM from 28 C to below 30 C, and WARNING at 30 C or above. Green is on only in NORMAL; red is on only in WARNING; both are off in WARM or when readings are unavailable. These are teaching thresholds, not health or equipment safety limits.

The photos show green at 27.5 C, a WARM status page, and red at 30.2 C. The Serial capture separately shows WARM readings near 29 C. These captures document example states; they do not establish calibrated sensor accuracy or every failure/recovery path.

ESP32 BME280 OLED two LED resistors and pushbutton on a breadboard
Image 01

Complete contributed capstone wiring. Each LED needs its own series resistor.

View full-size image
OLED Page 1 Climate showing temperature and humidity
Image 02

Page 1: Climate displays temperature and relative humidity.

View full-size image
OLED Page 2 Status showing pressure and WARM
Image 03

Page 2: Status displays pressure and the example temperature status.

View full-size image
Green indicator lit while OLED shows 27.5 C
Image 04

Recorded NORMAL example: 27.5 C, below the 28 C example threshold.

View full-size image
Red indicator lit while OLED shows 30.2 C
Image 05

Recorded WARNING example: 30.2 C, above the 30 C example threshold.

View full-size image
Serial readings with temperature humidity pressure and WARM status
Image 06

Separate 115200-baud capture showing WARM status near 29 C.

View full-size image
Supplementary owner-supplied recording, about 15 seconds. It shows the environment monitor, OLED pages and red indicator. It is not an independent hardware retest.

Open the demonstration clip

Expected Behaviour

Illustrative expected output, not recorded hardware data:

OLED Page 1 should show:

Page 1: Climate Temp: 24.8 C Hum: 47.2 %

OLED Page 2 should show:

Page 2: Status Pres: 1012.4 hPa Status: NORMAL

Serial Monitor should print formatted reports:

Mission 12: Smart Environment Monitor ready Temperature: 24.8 C | Humidity: 47.2 % | Pressure: 1012.4 hPa | Status: NORMAL Temperature: 29.1 C | Humidity: 46.8 % | Pressure: 1012.3 hPa | Status: WARM Temperature: 30.2 C | Humidity: 46.5 % | Pressure: 1012.1 hPa | Status: WARNING

An invalid/unavailable sample must instead show Sensor unavailable and Status: UNAVAILABLE; neither green NORMAL nor red temperature WARNING is asserted. Restoring plausible readings can restore a valid state on a later sample. These are expected checks, not recorded hardware results.

Common Mistakes

  • Forgetting LED resistors

    The LEDs need current limiting even in a capstone project.

  • Expecting yellow LED hardware

    The project uses yellow as an OLED status text, not a separate LED.

  • Button switches pages many times

    Mechanical bounce creates repeated transitions.

  • OLED and BME280 disappear together

    Shared I2C wiring means one bad SDA or SCL connection can affect both modules.

  • Temperature warning never triggers

    The room may be below the warning threshold.

  • Red LED stays on

    Threshold may be too low or the sensor is near heat.

  • Display looks crowded

    Trying to show all values on one tiny OLED page is hard to read.

  • Sampling too fast

    Fast sampling makes normal fluctuation look dramatic.

  • No Serial Monitor output

    Wrong baud rate or upload problem.

  • Treating this as only a wiring exercise

    The real lesson is system design.

Troubleshooting

Most ESP32 problems are wiring, power, library, or timing issues. Check these first.

  • Nothing appears on the OLED

    Likely cause: OLED address, power, or I2C wiring may be wrong.

    Fix: Run the I2C scanner from Mission 10 and confirm the OLED address.

  • BME280 not found

    Likely cause: Sensor address or wiring is wrong.

    Fix: Check for 0x76 or 0x77 with the scanner, then confirm 3.3 V, GND, SDA, and SCL.

  • Button does nothing

    Likely cause: The button may not connect GPIO23 to GND when pressed.

    Fix: Check the button orientation and confirm INPUT_PULLUP wiring.

  • LEDs are backwards

    Likely cause: LED polarity is reversed.

    Fix: Connect the longer leg through the resistor to the GPIO side and the shorter leg to GND.

  • Values look unrealistic

    Likely cause: Sensor placement, heat, address mismatch, or wrong module can affect readings.

    Fix: Move the sensor away from heat and compare with Mission 11 output.

  • Sensor unavailable during operation

    Likely cause: Bus/chip check failed or the sample is non-finite/out of range.

    Fix: Power off before checking selected BME280 model, safe pull-ups and wiring. Reset after startup faults. Do not interpret old values as current or a missing value as zero.

Engineer Tip

  • Test one subsystem at a time before trusting the full project.
  • Keep thresholds easy to change because real rooms are different.
  • Separate measurement, decision, display, and alert code into small functions.
  • Use Serial Monitor as your engineering log even when the OLED is working.
  • A portfolio project is stronger when you document what you tested and what you would improve next.

Remember This Forever

A real embedded system does not just run code.

It observes the world, makes a decision, and communicates clearly.

Mini Challenge

No wrong answers — experiment and have fun!

  • Add a simple average of the last five temperature readings before deciding status.
  • Add a yellow LED on another GPIO for the WARM state.
  • Create a third OLED page that shows all raw values in compact form.
  • Change Serial Monitor output into CSV format for later graphing.
  • Design a small enclosure layout and decide where the sensor should sit so it reads room air.

FAQs

  • Why is this mission called a capstone?

    A capstone combines many earlier skills into one complete project. This monitor uses GPIO, buttons, debouncing, I2C, OLED display, sensor readings, thresholds, and debugging.

  • Why does the monitor need thresholds?

    Thresholds turn raw measurements into decisions. The ESP32 does not just read temperature; it decides whether the environment is normal or needs attention.

  • Why use two OLED pages?

    A small OLED cannot show everything clearly at once. Pages make the display easier to read, just like menus in real devices.

  • Why use a button if the OLED can update automatically?

    The button gives the user control. It also lets you practice reliable input handling in a complete project.

  • Why does the Serial Monitor still matter?

    Serial Monitor is the engineering view. The OLED is the user view. Real projects often keep both during development.

  • Why not read the BME280 as fast as possible?

    Room conditions change slowly. Fast reading wastes effort and can make normal noise look more important than it is.

  • Can I use a DHT22 instead of BME280?

    You can build a simpler version with DHT22 for temperature and humidity, but this capstone uses BME280 because it also measures pressure and uses I2C.

  • Why are the LEDs useful if the OLED already shows status?

    LEDs provide instant glanceable feedback. A user can see normal or warning status without reading the screen.

  • What should I put on GitHub for this project?

    Include the Arduino sketch, wiring notes, a short README, threshold values, photos of your build, and what you tested.

  • What should I learn after Course 01?

    Move into connected IoT: WiFi, HTTP, REST APIs, MQTT, JSON, dashboards, Firebase, OTA updates, Bluetooth, and real IoT projects.

Previous Mission

Next Mission

Continue Learning

Technical references
