Maker Toolbox

Fast calculators for real ESP32 decisions.

Page sections

Plan pins, size resistors, estimate battery life, check voltage dividers, decode resistor bands, and calculate PWM and ADC values — all in one place.

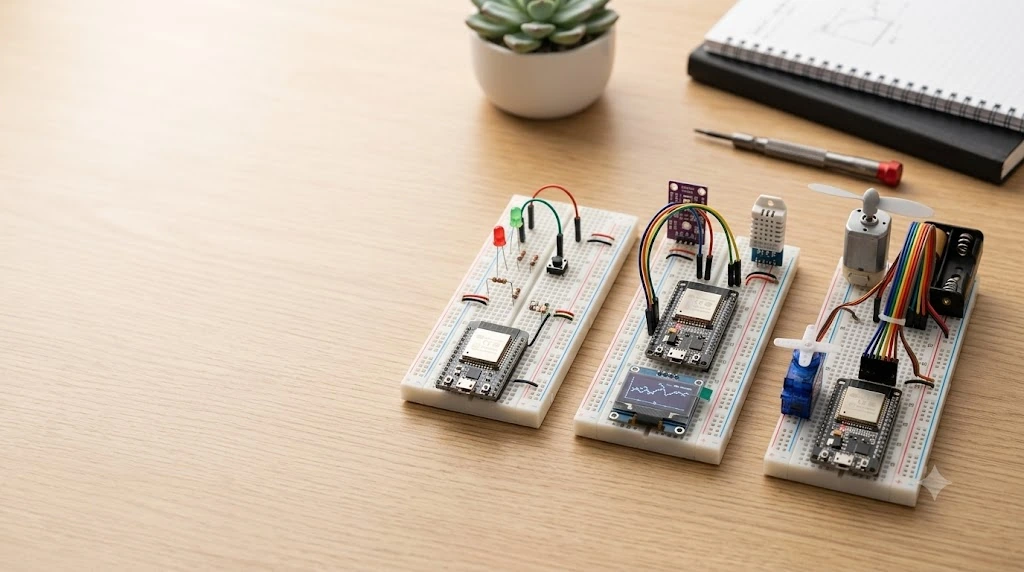

ESP32 maker toolbox with breadboards, sensors, LEDs, servo, and test components
GPIO

GPIO Planner

Reserve safe pins before wiring sensors, relays, LEDs, and buses.

Enter a GPIO to check common ESP32 guidance.
LED

LED Resistor Calculator

Find a safe series resistor for a simple indicator LED.

Recommended resistor appears here.
Divider

Voltage Divider Calculator

Estimate output voltage from two resistors.

Divider result appears here.
Battery

Battery Life Calculator

Quickly estimate runtime from capacity and current draw.

Battery estimate appears here.
PWM

PWM Calculator

Plan LED dimming and motor speed. Calculate frequency, period, and on-time from duty cycle.

PWM result appears here.
ADC

ADC Ideal Estimate

Estimate voltage using an assumed linear full-scale range. This does not calibrate an ESP32 ADC: the usable range depends on the chip and attenuation, not just its 3.3 V GPIO supply.

For measurements, see ESP32 ADC range and calibration. Arduino-ESP32 analogRead() returns raw counts; analogReadMilliVolts() returns a calibrated millivolt result.

Ideal estimate appears here.

The default 3.1 V illustrates classic ESP32 at 11 dB attenuation in the site's Arduino-ESP32 3.3.2 review baseline. It is not a universal range, safe-input limit or measured calibration.

Power

Power Consumption Calculator

Estimate average current across active and deep sleep phases in a duty-cycle project.

Power estimate appears here.
Ohms

Resistor Color Code

Decode 4-band resistors and find their value.

Resistor value appears here.
PIN

ESP32 Pinout Explorer

GPIO 21/22 = I2C default. GPIO 18/19/23/5 = SPI default. GPIO 6-11 = flash, never use. GPIO 34/35/36/39 = input-only.

Full pinout ->
UART

UART Reference

UART0 TX=GPIO1, RX=GPIO3 (USB). UART2 TX=GPIO17, RX=GPIO16 (free). Monitor baud: 115200. Logic level: 3.3V only.

Reference
RSSI

WiFi RSSI Reference

-30 to -50 dBm = Excellent. -50 to -70 = Good/Fair. Below -80 = move closer. Read via WiFi.RSSI().

Reference
SPI

SPI Reference

SCK=GPIO18, MOSI=GPIO23, MISO=GPIO19, CS=GPIO5 (one per device). Multiple devices share SCK/MOSI/MISO.

Reference
I2C

I2C Address Reference

SSD1306=0x3C, BME280=0x76/77, MPU-6050=0x68/69. SDA=GPIO21, SCL=GPIO22 default.

OLED guide ->
Safety

Safe GPIO Quick List

Beginner-safe pins: 4, 5, 18, 19, 21, 22, 23. Avoid 6-11 (flash) and be careful with 0, 2, 12, 15 (boot strap).

Mission 01 ->
