Multiple Buttons & State Detection

TIMEEstimated Time

LEVELDifficulty

PREPrerequisites

• Button Debouncing You should understand how one button becomes one clean software event.

SKILLSkills You'll Learn

• Read more than one button without mixing up the inputs
• Give every button its own pin, name, state, and debounce timer
• Detect the difference between held state and new press event
• Handle press and release actions separately
• Use arrays and small helper functions to keep button code organized

PARTSComponents Required

• ESP32ESP32 DevKit boardReads three independent button inputs
• BTNThree push buttonsUse the same type if possible
• BOARDBreadboardKeeps each button in its own rows
• WIREJumper wiresFor GPIO25, GPIO26, GPIO27, and GND
• USBUSB data cableUpload code and watch Serial Monitor

ENGEngineering Explanation

REALReal-World Analogy

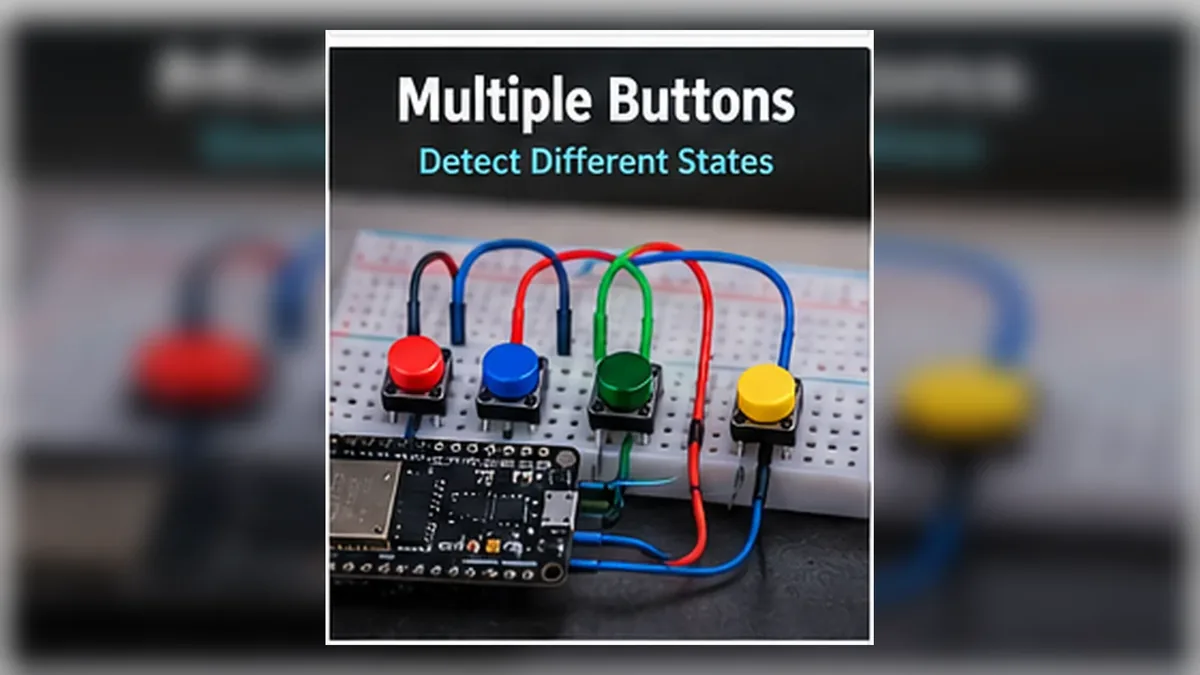

WIREWiring Diagram

Follow these steps in order. Unplug USB before you change any wires.

1. 1

   Unplug the ESP32 USB cable before wiring.

2. 2

   Place three push buttons across the breadboard center gap.

3. 3

   Connect one side of Button 1 to ESP32 GPIO25.

4. 4

   Connect one side of Button 2 to ESP32 GPIO26.

5. 5

   Connect one side of Button 3 to ESP32 GPIO27.

6. 6

   Connect the opposite side of each button to GND.

7. 7

   Do not add external resistors; the sketch uses INPUT_PULLUP for all three buttons.

8. 8

   Plug USB back in, upload the sketch, and open Serial Monitor at 115200 baud.

GPIOGPIO Table

⌨️Arduino Code

Copy this into Arduino IDE, then click Upload.

const byte BUTTON_COUNT = 3;

const byte buttonPins[BUTTON_COUNT] = {25, 26, 27};
const char* buttonNames[BUTTON_COUNT] = {"START", "STOP", "MODE"};

const unsigned long DEBOUNCE_DELAY = 50;

int lastRawReading[BUTTON_COUNT] = {HIGH, HIGH, HIGH};
int stableState[BUTTON_COUNT] = {HIGH, HIGH, HIGH};
unsigned long lastChangeTime[BUTTON_COUNT] = {0, 0, 0};

void setup() {
  Serial.begin(115200);

  for (byte i = 0; i < BUTTON_COUNT; i++) {
    pinMode(buttonPins[i], INPUT_PULLUP);
  }

  Serial.println("Mission 06: Multiple buttons ready");
  Serial.println("Press START, STOP, or MODE.");
}

void loop() {
  for (byte i = 0; i < BUTTON_COUNT; i++) {
    checkButton(i);
  }
}

void checkButton(byte index) {
  int rawReading = digitalRead(buttonPins[index]);

  if (rawReading != lastRawReading[index]) {
    lastChangeTime[index] = millis();
    lastRawReading[index] = rawReading;
  }

  bool readingHasSettled = (millis() - lastChangeTime[index]) > DEBOUNCE_DELAY;

  if (readingHasSettled && rawReading != stableState[index]) {
    stableState[index] = rawReading;

    if (stableState[index] == LOW) {
      Serial.print(buttonNames[index]);
      Serial.println(" pressed");
    } else {
      Serial.print(buttonNames[index]);
      Serial.println(" released");
    }
  }
}

CODELine-by-line Explanation

• BUTTON_COUNT tells the program how many buttons are in the panel.
• buttonPins stores the GPIO number for each button. Button 0 uses GPIO25, button 1 uses GPIO26, and button 2 uses GPIO27.
• buttonNames stores human-friendly labels so Serial Monitor prints START, STOP, and MODE instead of only numbers.
• lastRawReading keeps the latest immediate digitalRead() value for each button.
• stableState keeps the trusted debounced state for each button.
• lastChangeTime keeps a separate debounce timer for each button so one button's bounce does not affect another button.
• setup() uses a for loop to set every button pin to INPUT_PULLUP.
• loop() checks every button every time it runs. The ESP32 is fast enough that this feels instant for a small button panel.
• checkButton(index) runs the same debounce logic for whichever button number is passed in.
• When the debounced state becomes LOW, the code prints a press event. When it becomes HIGH, the code prints a release event.

WARNCommon Mistakes

• Using one state variable for all buttons

  The code cannot remember three independent states in one variable.

• Giving two buttons the same GPIO pin

  Copy-paste or wiring notes were not updated.

• Forgetting a separate debounce timer

  One shared timer makes one button's bounce affect the others.

• Triggering actions while the button is held

  The program reacts to current state every loop instead of reacting to the change event.

• Mixing pull-up and pull-down wiring styles

  Some buttons are wired to GND and others to 3.3 V.

• Testing all buttons at once first

  Multiple mistakes can hide each other.

!Troubleshooting

Most ESP32 problems are wiring, power, library, or timing issues. Check these first.

• Wrong button name appears

  Likely cause: The physical wire order does not match the buttonPins and buttonNames arrays.

  Fix: Trace each wire from the GPIO pin to the button and update either the wiring or the array order.

• One button never prints

  Likely cause: That GPIO wire may be in the wrong breadboard row or the button may not cross the center gap.

  Fix: Move the button across the breadboard gap and test the pin with a single-button sketch if needed.

• A button prints many presses

  Likely cause: Its debounce timer may not be separate, or the delay may be too short for that physical button.

  Fix: Confirm lastChangeTime is indexed and try DEBOUNCE_DELAY = 80.

• Two buttons trigger together

  Likely cause: Their GPIO wires or ground rows may be accidentally connected.

  Fix: Separate the wires, check breadboard rows, and test each input one at a time.

• Serial Monitor prints nothing

  Likely cause: The baud rate may be wrong, upload may have failed, or all buttons may be wired to the wrong side.

  Fix: Use 115200 baud, upload again, and confirm every button connects its GPIO pin to GND when pressed.

TIPEngineer Tip

REMRemember This Forever

?FAQs

• Can two buttons share one GPIO pin?

  Not if you want to know which button was pressed. Each normal button should use its own GPIO pin so the ESP32 can read it independently.

• Do I need separate debounce timing for each button?

  Yes. Each mechanical button bounces on its own schedule, so each button needs its own last reading, stable state, and change time.

• Will pressing two buttons at once damage the ESP32?

  No. With the INPUT_PULLUP wiring in this mission, pressing two buttons at once is safe. Your code simply needs to decide how to respond.

• Is reading multiple buttons much slower than reading one?

  No. Reading a few GPIO pins takes a tiny amount of time. The bigger challenge is keeping the code organized and the states separate.

• What is the difference between button state and button event?

  State means what the button is doing right now, such as pressed or released. Event means something just changed, such as a new press or a new release.

• Why does my code trigger again while I hold the button?

  That usually happens when the code reacts to the current pressed state every loop instead of reacting only to the moment the state changes.

• Can I copy the same debounce code three times?

  You can, but it becomes easy to make mistakes. Arrays and a small helper function keep the same logic consistent for every button.

• Should all buttons use INPUT_PULLUP?

  For beginner projects, yes. Keeping all buttons wired the same way reduces confusion because released means HIGH and pressed means LOW for every button.

• What happens if I mix up the wire order?

  The wrong button name will appear in Serial Monitor or the wrong action will run. Label your pins and test one button at a time.

• Can I detect both press and release?

  Yes. A press event happens when the debounced state changes to LOW. A release event happens when it changes back to HIGH.

• Why use arrays for buttons?

  Arrays let one piece of code handle several buttons. Instead of writing the same logic over and over, the loop can check each button by index.

• Do I need interrupts for multiple buttons?

  No. For beginner button panels, checking the buttons in loop() is simpler, reliable, and easier to debug.

• What if two buttons are pressed at exactly the same time?

  The ESP32 can detect both. Your program should define what that means, such as allowing both actions or giving one action priority.

• Why not use the same variable for every button?

  One variable can only remember one thing at a time. If several buttons share the same state variable, one button can overwrite another button's information.

• How should I name buttons in code?

  Use names that describe purpose, such as START, STOP, and MODE, instead of vague names like btn1 and btn2.
